230V AC, On/Off kontrol, 105N, NC (normalde kapalı), 270sn çalışma süresi, 4,5mm stroke, IP54

DN20 (3/4') 3 yollu vana gövdesi, dıştan dişli, Kv4m³/h, PN16,1-110°C, 2,5mm strok

DN15 (1/2') 3 yollu vana gövdesi, dıştan dişli, Kv2,5m³/h, PN16,1-110°C, 2,5mm strok

DN10 (G ½B) 3 yollu vana gövdesi, dıştan dişli, Kv0,63m³/h, PN16,1-110°C, 2,5mm strok

DN10 (G ½B) 3 yollu vana gövdesi, dıştan dişli, Kv0,4m³/h, PN16,1-110°C, 2,5mm strok

DN40 (1 1/2') 3 yollu vana gövdesi, dıştan dişli, Kv25m³/h, PN16,1-110°C, 2,5mm strok

DN32 (1 1/4') 3 yollu vana gövdesi, dıştan dişli, Kv16m³/h, PN16,1-110°C, 2,5mm strok

DN25 (1') 3 yollu vana gövdesi, dıştan dişli, Kv10m³/h, PN16,1-110°C, 2,5mm strok

DN25 (1') 3 yollu vana gövdesi, dıştan dişli, Kv6,3m³/h, PN16,1-110°C, 2,5mm strok

DN20 (3/4') 3 yollu vana gövdesi, dıştan dişli, Kv4m³/h, PN16,1-110°C, 2,5mm strok

DN10 (G ½B) 3 yollu vana gövdesi, dıştan dişli, Kv0,4m³/h, PN16,1-110°C, 2,5mm strok

DN10 (G ½B) 3 yollu vana gövdesi, dıştan dişli, Kv0,25m³/h, PN16,1-110°C, 2,5mm strok

DN25 (1') 2 yollu vana gövdesi, dıştan dişli, Kv10m³/h, PN16,1-110°C, 2,5mm strok

DN15 (1/2') 2 yollu vana gövdesi, dıştan dişli, Kv2,5m³/h, PN16,1-110°C, 2,5mm strok

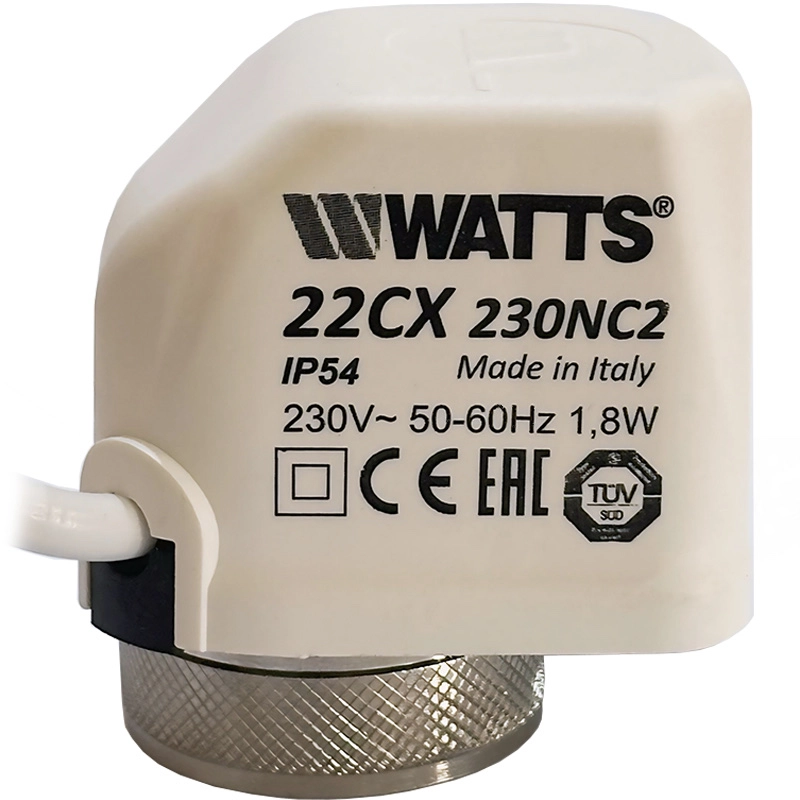

230V AC, 2 wired On/Off control, 100N, NC (normally closed), 90sec open/close time, 4mm stroke, IP54

24V AC, 2 wired On/Off control, 100N, NC (normally closed), 90sec open/close time, 4mm stroke, IP54

DN25 (1') 2 way valve body, external threaded, Kv5,2m³/h, PN16,4-110°C, 2,5mm stroke, 3m/sec max flow rate, 0,7bar max. pressure

DN20 (3/4') 2 way valve body, external threaded, Kv2,8m³/h, PN16,4-110°C, 2,5mm stroke, 3m/sec max flow rate, 1,5bar max. pressure

DN15 (1/2') 2 way valve body, external threaded, Kv1,7m³/h, PN16,4-110°C, 2,5mm stroke, 3m/sec max flow rate, 2,5bar max. pressure

100N, NC (Normalde Kapalı), 2 kablolu On/Off kontrol, 230V AC, 2,5mm stroke mesafesi, IP54
