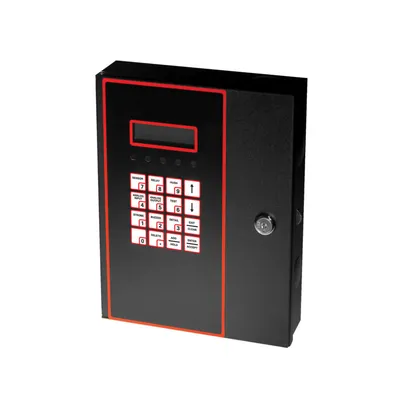

M-CONTROLLERX-T00 - ACI
Automation Field Components
Controller, 32 dgital QEL sensors, eight 4-20mA inputs, 3 DPDT Relays, Steel Nema 1, eight 4-20mA output card
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
128896
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
M-CONTROLLERX-T00 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The M-Controller is a multi-channel controller and alarm unit that utilizes both digital and analog communications to interface with a maximum of 32 remote digital transmitter/sensors, and 8 analog transmitter/sensors. Common relay configurations include voting, averaging, delay on actuation and de actuation, normally/not-normally energized and latching. An additional feature includes 24 VDC transistor outputs for a horn and strobe. An RS-422 output responds as a RTU Slave using MODBUS protocol which allows the controller to provide read status information only. The M-Controller can be programmed with the onboard key pad or the M-View Software which is downloaded using the RS-232 interface. Also available is an analog output card that includes eight 4-20 mA analog outputs. Each analog output can be defined in complex fashions allowing the averaging of several input signals and outputs a linear 4-20 mA signal.
M-Relay modules are designed to allow expandability for control to the M-Controller over an RS-485 communication link, which allows flexibility during installation and wiring. M-Relays operate on 24 VAC/VDC and may be powered via the port power of the M-Controller or directly from a local
power source. Each relay module is addressed from 0 to 11 and is defined by a four position dipswitch. The M-Controller has three relays (1, 2 ,3) after which the M-Relay can be added and will correspond with 4 through 99. The M-Relay module is available with 2, 4, 6, or 8 relays per module.
Refer to all applicable Federal, State, Provincial and Local Health and Safety laws and regulations before using these products.Applications: Underground Parking Garages, Water Treatment Plants, Municipal Service Garages, Aircraft Hangers, Chiller Monitoring,
Warehouses, Automobile Dealerships & Battery Charging / StorageThe M-Controller is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
