SMART VALVE SOLUTION

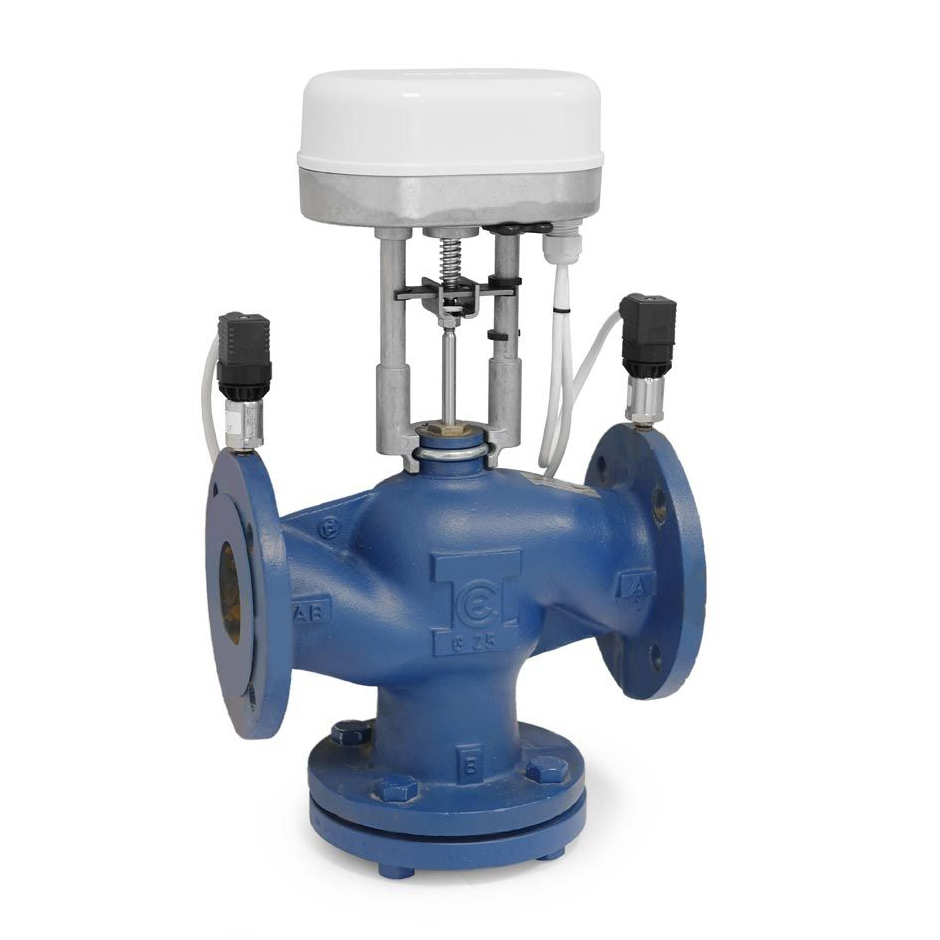

Smart Balancing Control Valve
- EBV is a unique smart device integrating many intelligent functions.
- Pressure independent flow control helps avoid energy waste caused by unbalanced hydraulic circuits.
- On-board PID temperature loop provides significant savings by eliminating the need for a DDC controller.
- Energy control and energy monitoring help deliver only the energy actually required by the system.

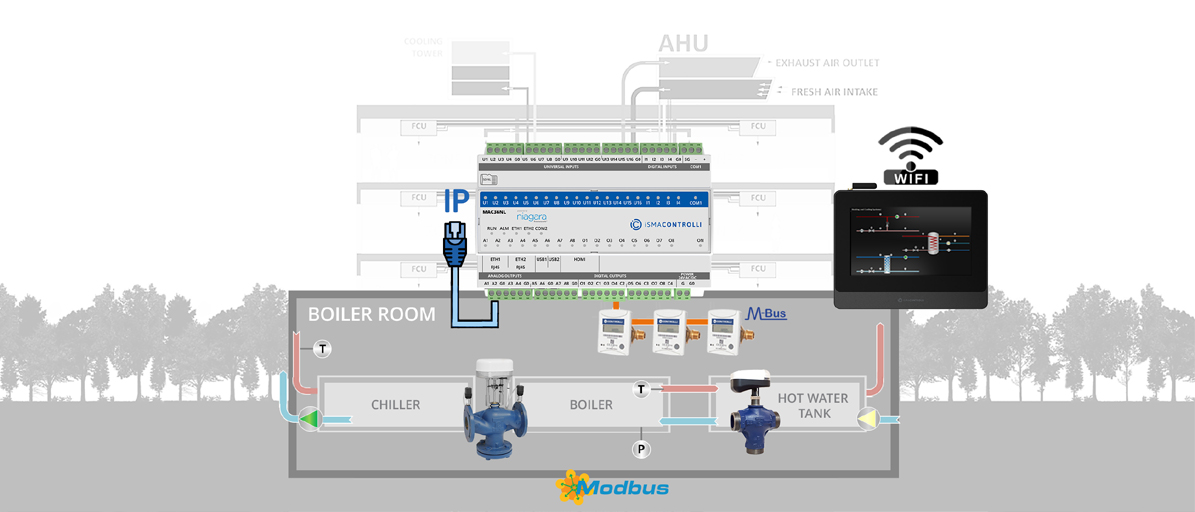

- Modbus communication enables direct integration into BMS systems.
- ∆T control helps prevent energy waste caused by low ∆T or uncontrolled return temperature.
Other Relevant Features
- Compact solution compared to competitors; ideal for upgrading existing systems.
- More competitive price compared to competitor energy valves.
- Full data set available through Modbus, including supply and return temperature, delta T, instantaneous flow, power and historical energy data.
- Valve can be controlled by simple analog signal or Modbus protocol.
Technical Specifications
| Code | DN | Min Flow [m³/h] | Max Flow [m³/h] | PN | Max ∆P [kPa] | Power Supply |
|---|---|---|---|---|---|---|
| EBV65 | 65 | 12 | 37 | 16 | 35-800 | 24 Vac/dc 230 Vac |
| EBV80 | 80 | 25 | 59 | 16 | 35-800 | 24 Vac/dc 230 Vac |
| EBV100 | 100 | 45 | 77 | 16 | 35-800 | 24 Vac/dc 230 Vac |
| EBV125 | 125 | 61 | 118 | 16 | 35-800 | 24 Vac/dc 230 Vac |
| EBV150 | 150 | 80 | 177 | 16 | 35-800 | 24 Vac/dc 230 Vac |

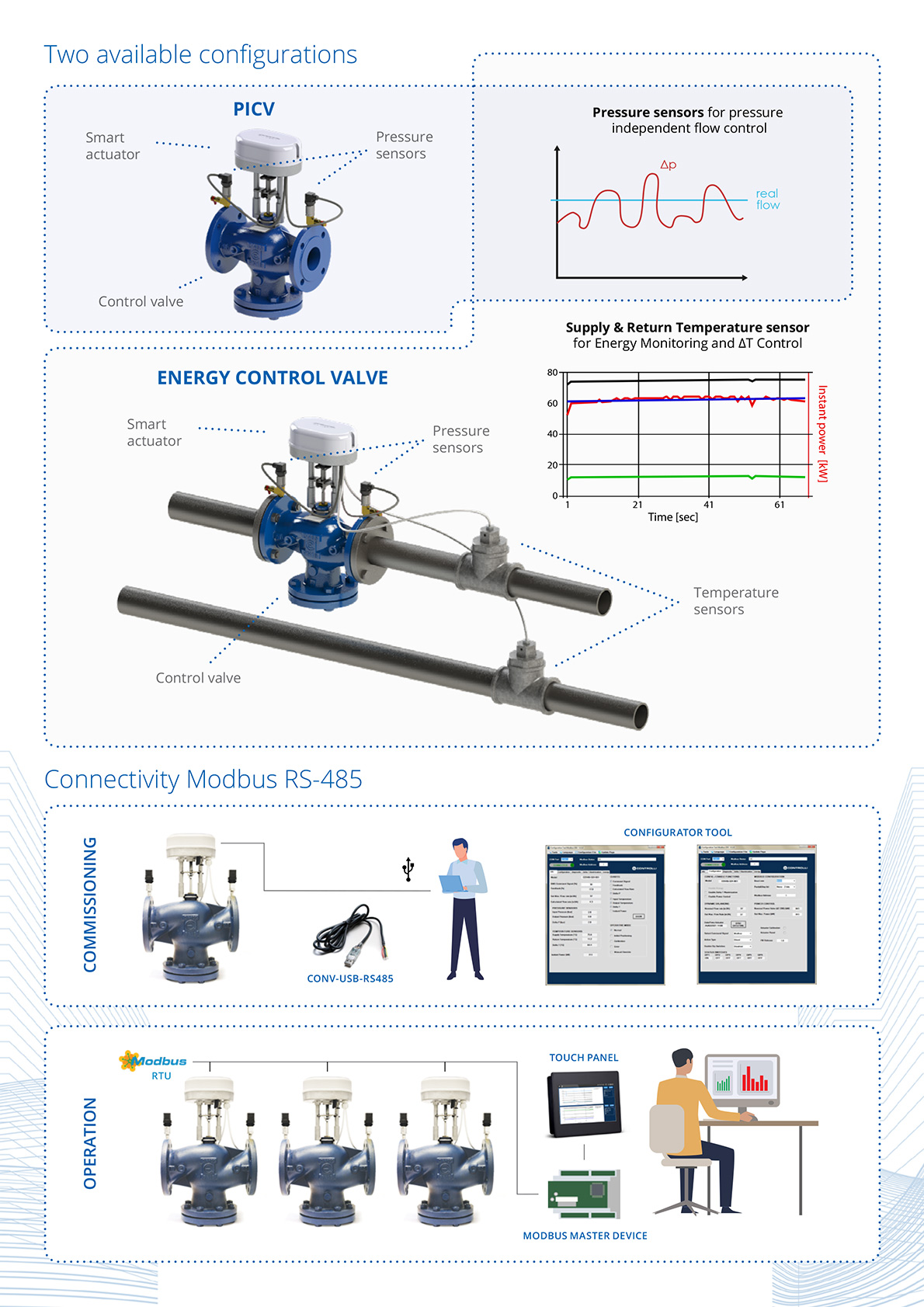

Feature Comparison
| Features | EBV_0 | EBV_1 |
|---|---|---|
| Pressure independent flow control | ✓ | ✓ |
| Flow rate calculation | ✓ | ✓ |
| Minimum and maximum flow value setting | ✓ | ✓ |
| Modbus connectivity | ✓ | ✓ |
| DeltaT control loop between supply and return water | – | ✓ |
| Power kW and energy kWh monitoring and control | – | ✓ |
| Local PID control embedded in the actuator on T or ∆T | – | ✓ |
| Configuration through micro USB | ✓ | ✓ |

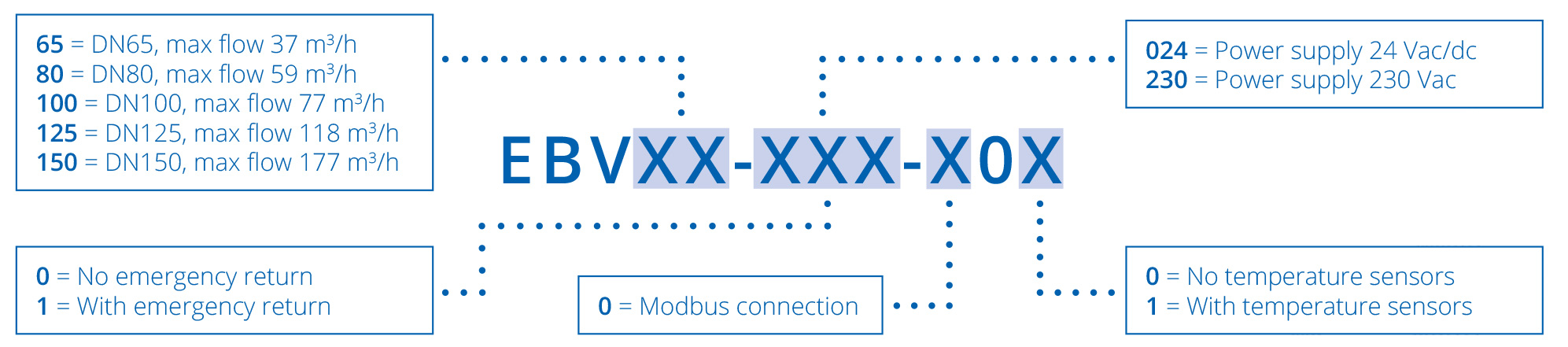

Ordering Code Example
Example: EBV65-024-001 >> Max flow 37 m³/h, DN65, 24 Vac/dc, no emergency return, with Modbus connection, with energy function enabled and 2 temperature sensors included.
