A/MSCS - ACI
Automation Field Components

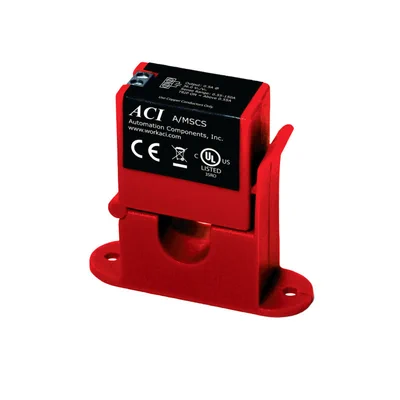

Mini, Fixed Current Switch, Split Core, NO, 0 to 150A Range, <0.55A Trip Point
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
117853
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
A/MSCS - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.
The A/MCS and A/MSCS are miniature “Go/No Go” current status switches designed to replace relays in most applications. These switches are small in stature, allowing for tight installations. The output of the A/MCS and the A/MSCS current switches functions as a N/O switch, activated by the amount of sensed AC current. The output of these switches uses a N/O solid-state switch (more reliable than a relay) and is non-polarity sensitive. These units perform in any application where the amount of AC current flow is sufficient to indicate the operating status of the sensed load. The A/MCS and A/MSCS Series are covered by ACI's Five (5) Year Limited Warranty.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
