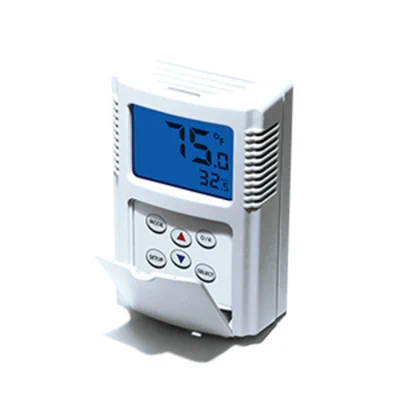

Humidity Sensor with LCD

The ACI Relative Humidity with LCD utilizes a thermoset polymer capacitive sensing element with integral hydrophobic ­filter to deliver a proportional analog current or voltage output with long term reliability. The styling of the white, wall mounted enclosure with hinged cover makes it suitable for use in a wide variety of applications. The ACI RH LCD series products can be powered with either an AC or DC supply voltage and features a large, backlit display which improves the overall visibility of the display. Other features include onsite ­eld calibration through a single point o‑set through the programming of the device using the integral keypad. All units must be ordered with one of the supported output signals of 4-20 mA, 0-5 VDC, or 0-10 VDC. For additional options, including temperature, set point, override, fan and system settings, please see the A/TUCH2 product data sheet.

Applications: Local Humidity Display, Hospitals and Operating Rooms, Pharmaceutical Labs, Clean Rooms, ESD Static Control, Humidifi­cation, Dehumidi­fication

The ACI RH LCD is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
