AFS-222 - ACI
Otomasyon Saha Ekipmanları

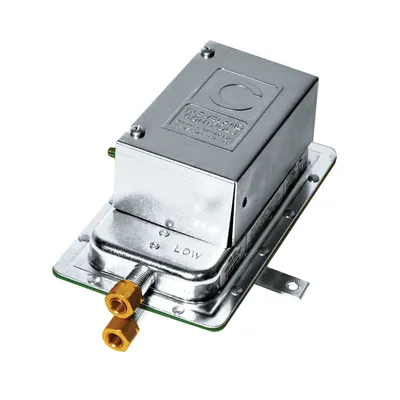

The AFS-222 differential pressure switches are general purpose proving switches designed for both HVAC and Energy Management applications. These pressure switches can be used to sense positive, negative, or differential air pressures. The A/AFS-222 has a field adjustable operating range of 0.07" to 12.0" W.C.. The AFS-222 has a field adjustable setpoint range of 0.05" +/- 0.02" to 12" W.C. with a field adjustable release range of 0.04" to 11.2" of W.C.. The AFS-222 will accept a 0.25" O.D. rigid metallic tubing via the integral compression ferrule and nut. The enclosure cover guards against accidental contact with the live switch terminal screws and the setpoint adjusting screw. It also contains a 1/2" conduit knockout in the cover of the enclosure.

ACI differential air pressure switches are designed for HVAC, Building Automation, or light industrial systems.  Typical applications include: building static pressure, filter monitoring, and proof of air flow.
