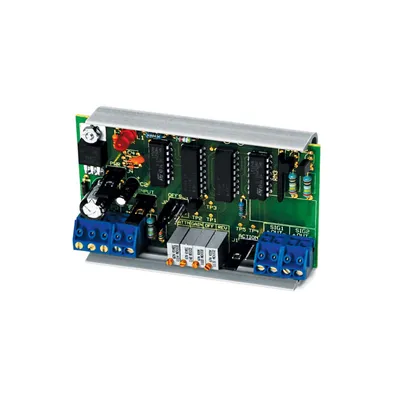

The ARM2 will accept a single analog (voltage or current) signal and split that signal into two DC non-isolated current sourcing outputs that can be re-scaled. Its primary application is as a signal splitter. The outputs are always scaled identically and will always track each other. The top-adjust trimmer potentiometers can be used to make ­ne adjustments to output ranges for maximum flexibility. This device can attenuate an input signal to 100%. The ARM2 also has an adjustable gain and offset. The output gain can be adjusted from 1 to 20 times the input (gain will vary depending on input). The ARM2 can also reverse an input signal and has a regulated 23 VDC power supply output to power sensors. The ARM2 can also accept a resistance input by using voltage divider applications.

The ARM2 is ­field calibratable, however, factory calibration is available upon request for an additional charge and will speed up installation time for the end user.

Click HERE to a list of field calibration instructions.
