Data Sheet ASENSE-GH-LCD - ACI Automation Field Components download pdf

Please contact us if you need any other document this item may have. You can only download Technical Document (Datasheet) on this section.

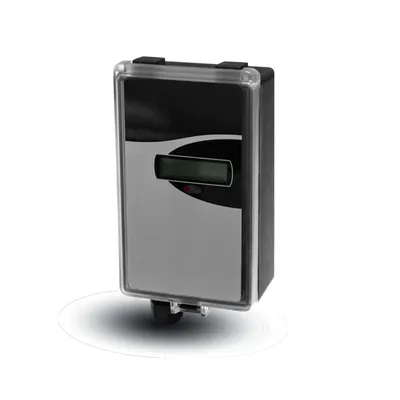

The ASENSE-GH-LCD is a CO2 sensor that is designed for monitoring CO2 and temperature in areas that have higher Carbon Dioxide levels such as greenhouses, incubators, and breweries. It has a conformally coated PCB and filter equipped housing to protect against dust and high humidity. The ASENSE-GH uses State-of-the-art non-dispersive infrared (NDIR) technology and has a membrane covered sample chamber that gives a stable and reliable CO2 reading. There are three (3) outputs on the ASENSE-GH: Output 1 for CO2: 0/2-10V or 0/4-20 mA 0-2000 ppm, Output 2 temperature: 0/2-10V or 0/4-20 mA 0-50ºC, and Output 3 is a relay for fan control. An optional RS485 interface for Modbus communication is available. NOTE: This product can be custom calibrated to ranges up to 10,000 PPM. Please add the part listed in the lower left corner of this page for custom calibration.

Applications: Greenhouses, Grow Houses, Breweries, Indoor Agriculture, Mushroom Farms, Horticultural and Medical Incubators
