EPC - ACI
Automation Field Components
Analog Input (0-5VDC), Pressure Output (0-10PSI), Single Valve, 0.007" Bleed Orifice, (0-10V, 0-15V 0-20mA), (0-15PSI, 0-20PSI)
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
102475
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
EPC - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

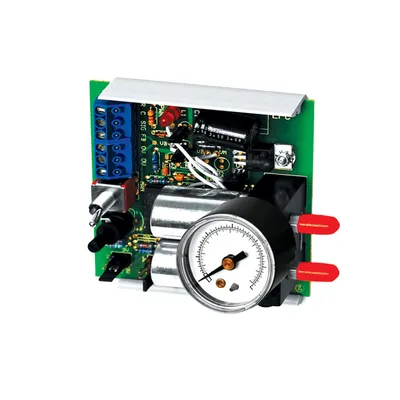

The EPC* is an electric to pneumatic transducer which converts an analog input signal to a proportional pneumatic output, modulating its control valve(s) to regulate the branch line pressure to the set point determined by the input signal. The EPC* offers four selectable input ranges of 0 to 5, 0 to 10, 0 to 15 VDC and 0 to 20 mA. Output pressure ranges are jumper shunt selectable for 0 to 10, 0 to 15 and 0 to 20 psig, and adjustable in all ranges. A 0-5 VDC feedback signal indicating the resultant branch line pressure, is also provided. EPC's are designed with electrical terminals on one end and pneumatic connections on the other, allowing for maximum convenience in wiring and tubing installation when panel mounted. The EPC is covered by ACI's Two (2) Year Limited Warranty.
- Three way mixing valve control
- Pilot positioner control
- Compressor staging
- Chiller loading
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
A/10K-E1-INW-4'-4X - ACI
Automation Field Components
10,000 Ohm (E1) Thermistor, Immersion, No Well, 4', NEMA 4X Enclosure
A/CP-DO-12'-96'CL2P-QC - ACI
Automation Field Components
10,000 Ohm Thermistor (Type II), Duct, Without Box, 12', 96' Plenum Cable, Quick Connects
A/DLP-500-P-B-D-B-3-A-0P - ACI
Automation Field Components
Differential Low Pressure, 500 Pascals, Bidirectional, LCD, 0.25% Accuracy, w/ Pitot Tube and Din Rail, 4-20mA Output, No Nist, Standard
A/MLP2-004-W-B-B-A-5P - ACI
Automation Field Components
Differential Pressure, Panel Mount, 4.00 inWC, BiDirectional, +/- 0.25% FSO, 4-20mA, 5 PT NIST
A/MLP2-001-W-U-A-A-3P - ACI
Automation Field Components
Differential Pressure, Panel Mount, 1.00 inWC, UniDirectional, +/- 0.5% FSO, 4-20mA, 3 PT NIST
A/MLP2-1K0-P-U-A-A-0P - ACI
Automation Field Components
Differential Pressure, Panel Mount, 1000 pascals, UniDirectional, +/- 0.5% FSO, 4-20mA

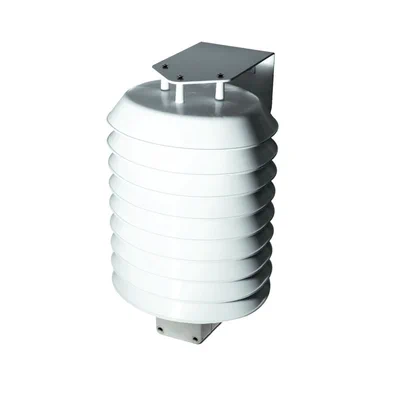

A/CP-O-SUN - ACI
