PTA2 - ACI
Automation Field Components
Pulse Width Modulation Input (0.1 to 10 sec), Analog Output(0-10V), (0.02 to 5, 0.59 to 2.93, 0.1 to 25.5s Selectable)
This item is temporarily out of stock.
It can be backordered right now, and we can ship it within 5 weeks.
0
102633
ACI
U.S.A.
{{CMP.TITLE}}
- Features
- Comments (0)
-
Data Sheet
PTA2 - ACI
Automation Field Components
download pdfPlease contact us if you need any other document this item may have.
You can only download Technical Document (Datasheet) on this section.

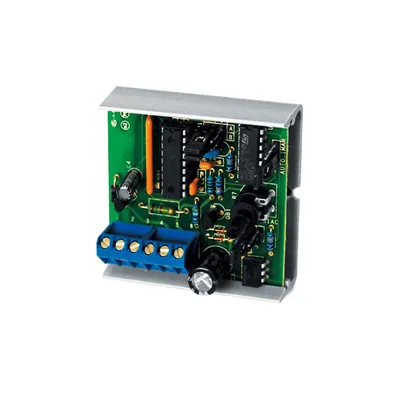

The PTA2 accepts a timed contact, or solid state closure, from a microprocessor controller and converts it to a linear analog output with 255 steps of resolution. The PTA2 will not wrap around if an excessively long pulse is received. Four input pulse rates are jumper selectable. The input signal is optically isolated and can accept either positive or negative polarity. The PTA2 includes triac adapter circuitry ( jumper selectable) for a triac input. The PTA2 has a jumper selectable manual override which will allow modulation of the output between 0-10VDC to verify proper operation of the controlled device. The last output signal is held until the PTA2 receives the end of the next pulsed input signal. The PTA2 is covered by ACI's Two (2) Year Limited Warranty.
Warranty :This product is under warranty for 2 years against manufacturing and material defects from the date of invoice. The invoice for the products also stands in place of the warranty certificate, a separate document is not issued.Delivery Information :ACI branded products are imported from United States of America factory specially to order. The estimated delivery time of the products is 5 weeks. In this product group, an additional shipping and customs fee of 450EUR is charged for orders under 4,000EUR.
