Required Products for a Separate Thermostat Control System in Each Room
When each room is intended to be controlled by a separate thermostat, a thermal actuator is connected to each zone on the thermostatic manifold. Thanks to the commands coming from the thermostats, the relevant room or zone can be opened and closed independently. This system provides higher comfort and more efficient heating control.
1. Manifold Selection
In order to control each room separately, a thermostatic manifold suitable for thermal actuator connection must be used. If you do not have a manifold, you can choose the suitable manual-thermostatic or flowmeter-thermostatic manifold set for your system.
Manual-Thermostatic Manifold Set
This is a manifold set with a manual valve on the supply line and a thermostatic valve suitable for thermal actuator connection on the return line.
View Products
Flowmeter-Thermostatic Manifold Set
It provides room-based control with a supply manifold with flowmeters and a thermostatic return manifold suitable for thermal actuator connection.
View Products2. Thermal Actuator Selection

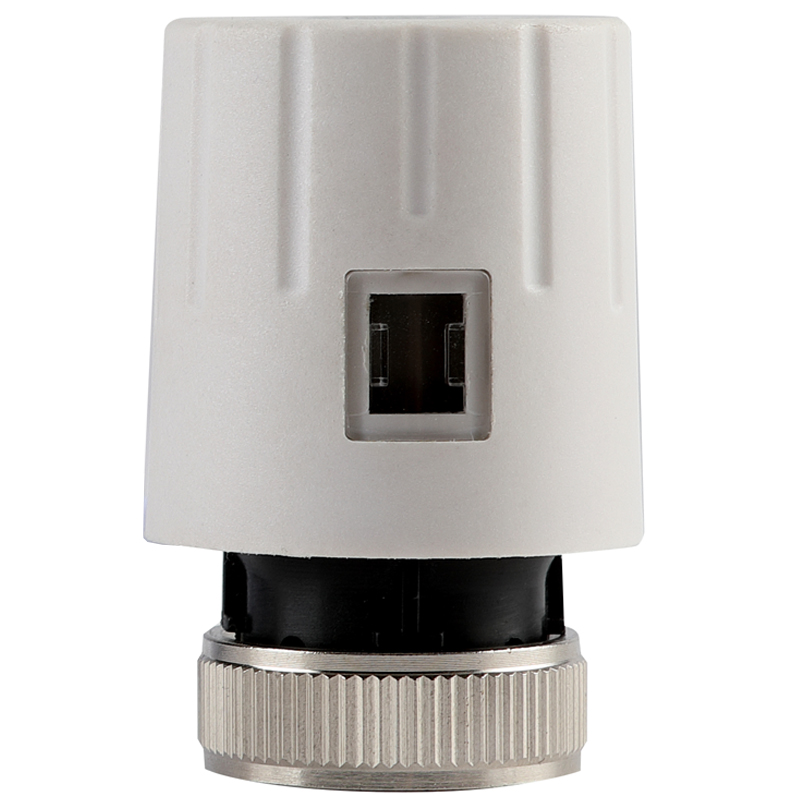

In systems where each room will be controlled by a separate thermostat, the TA230-NC thermal actuator should be used for each zone on the thermostatic manifold. Each thermostat controls the actuator of its own connected zone and opens or closes the line according to the heating demand of the relevant room.
3. Control Box (Terminal Box)
In systems where each room uses a separate thermostat, a terminal box is used to provide the connection between thermostats and thermal actuators. The terminal box provides central control of the entire system and helps pumps and other equipment switch on and off automatically.
CB-001 Terminal Box
Distribution terminal box for underfloor heating systems. Suitable for use with 8 thermostats and 16 actuators. Pump and external motorized valve control are available. Operates with 230V AC power.
View Product
CB-002 Terminal Box
Distribution terminal box for underfloor heating systems. Suitable for use with 8 thermostats and 16 actuators. Pump and external motorized valve control are available. It can communicate wirelessly with RT226-T9 model thermostats.
View Product4. Thermostat Selection
In room-based control systems, wired, wireless, digital, programmable or Wi-Fi mobile phone controlled thermostat models can be preferred according to different usage needs.
RT226-C11-BW
Surface-mounted, 230V AC, weekly programmable and Wi-Fi mobile phone controlled model.
View
RT226-T7-WIFI
Flush-mounted built-in, 230V AC, weekly programmable and Wi-Fi mobile phone controlled model.
View
RT226-T9
Flush-mounted built-in model with 230V power supply.

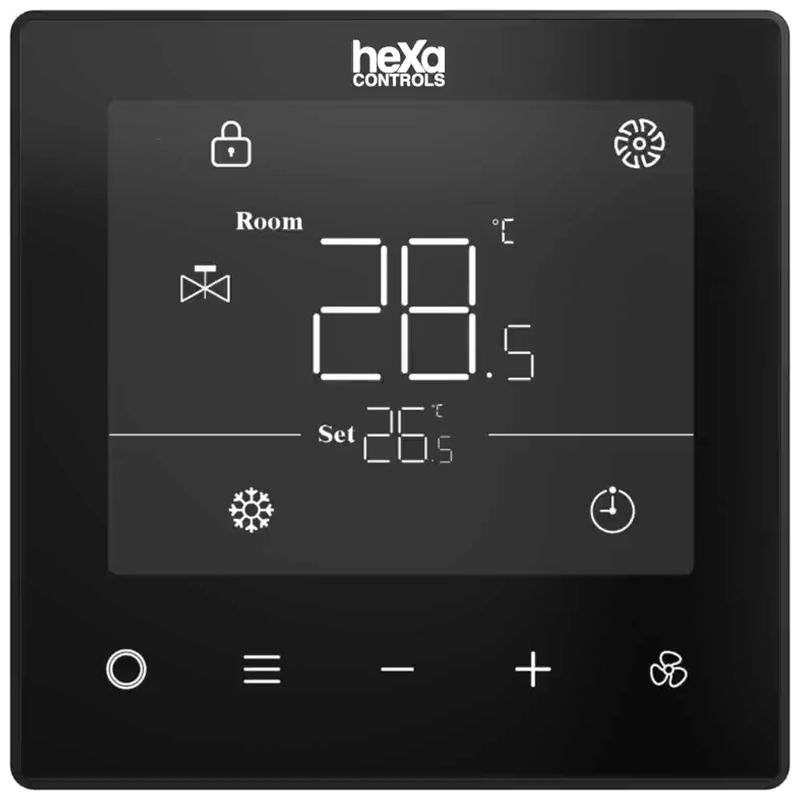

RT226-T9-WIFI
Flush-mounted built-in model with 230V power supply and Wi-Fi mobile phone control.
RT226-T9-B
Surface-mounted model with 230V power supply.
RT226-T9-B-WIFI
Surface-mounted model with 230V power supply and Wi-Fi mobile phone control.
RT226-T9W
Flush-mounted built-in model with 230V power supply.
RT226-T9W-WIFI
Flush-mounted built-in model with 230V power supply and Wi-Fi mobile phone control.

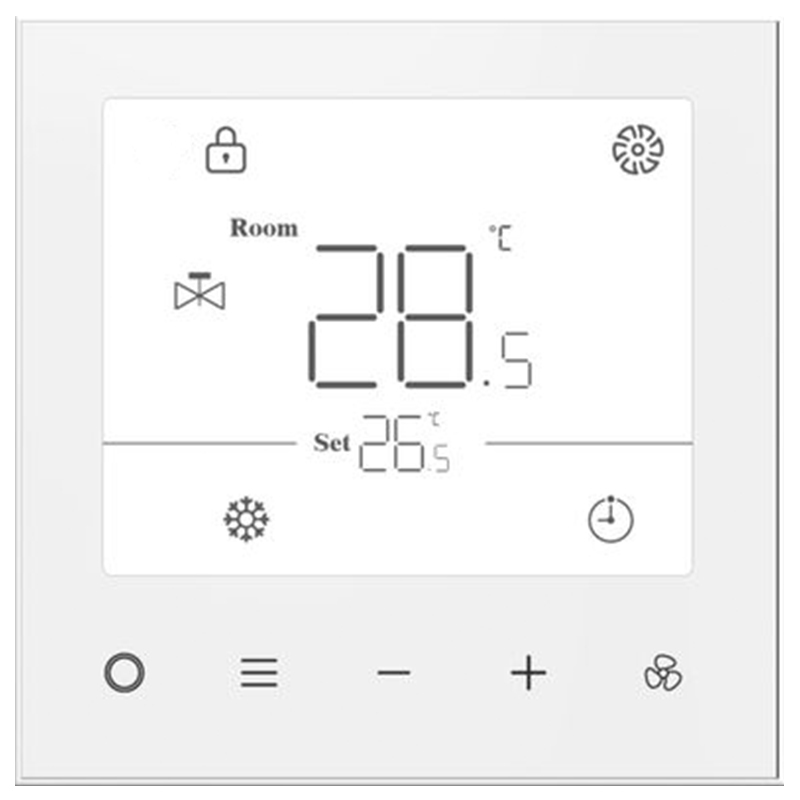

RT226-T9W-B
Surface-mounted model with 230V power supply.
RT226-T9W-B-WIFI
Surface-mounted model with 230V power supply and Wi-Fi mobile phone control.
